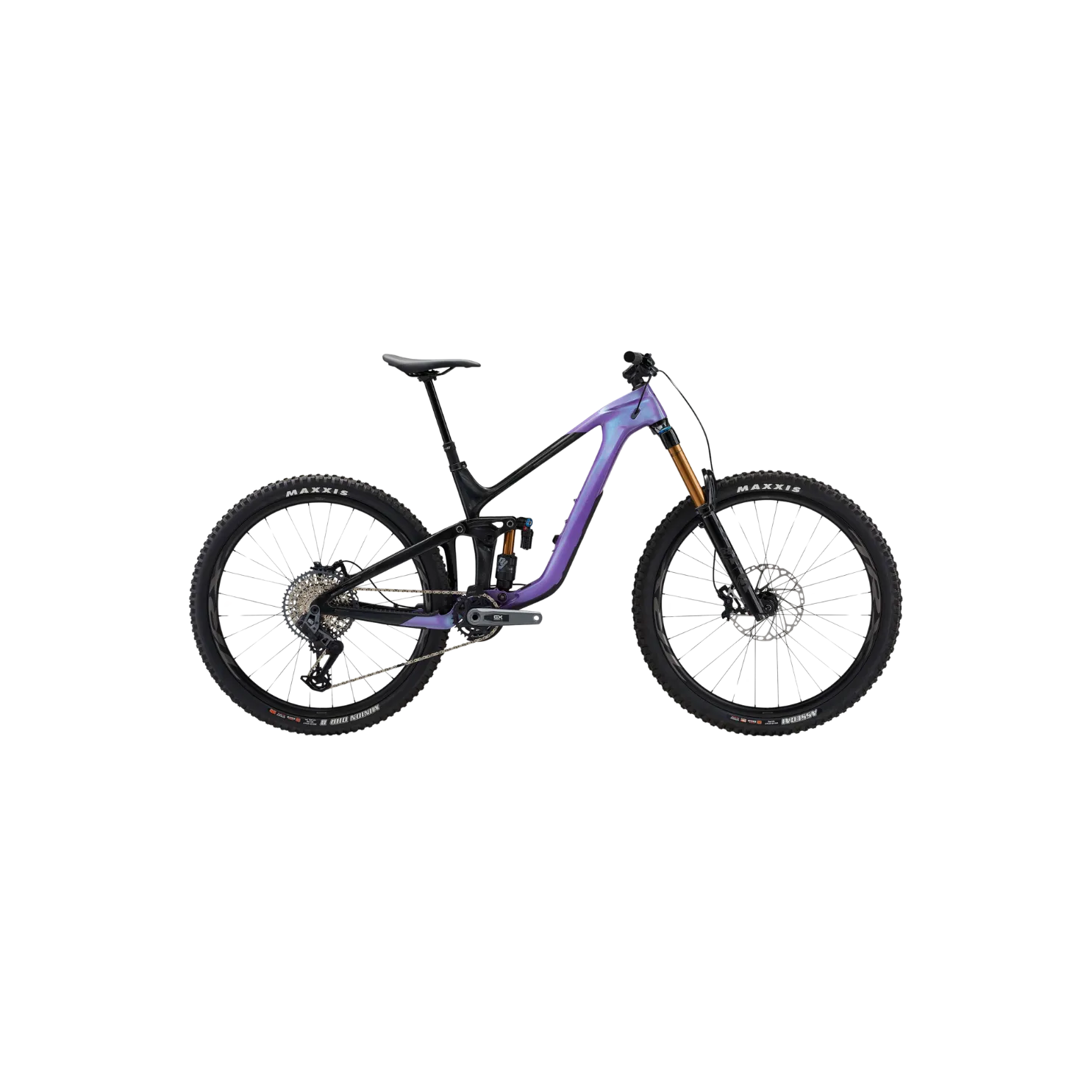

Go fast, get rowdy and nail new lines. With a full-composite chassis, developed with Giant’s enduro racing pros, this hard-charging 29er has 160mm of Maestro rear suspension, adjustable geometry, and the option to switch to a 27.5-inch rear wheel.
Features
Race-bred suspension: A Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). The Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.

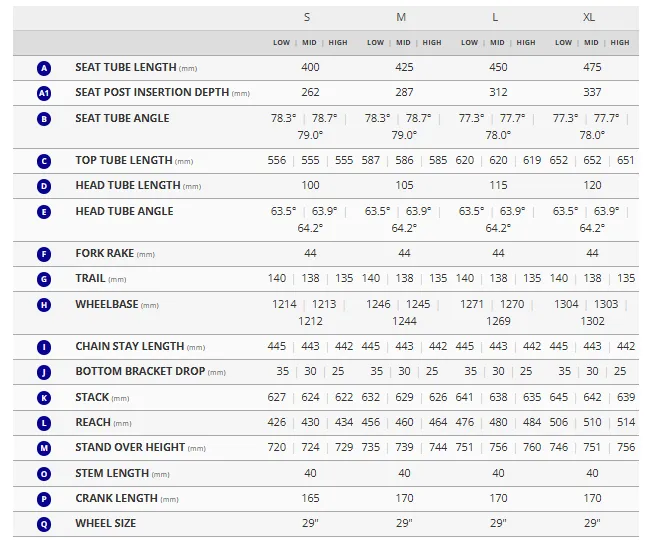

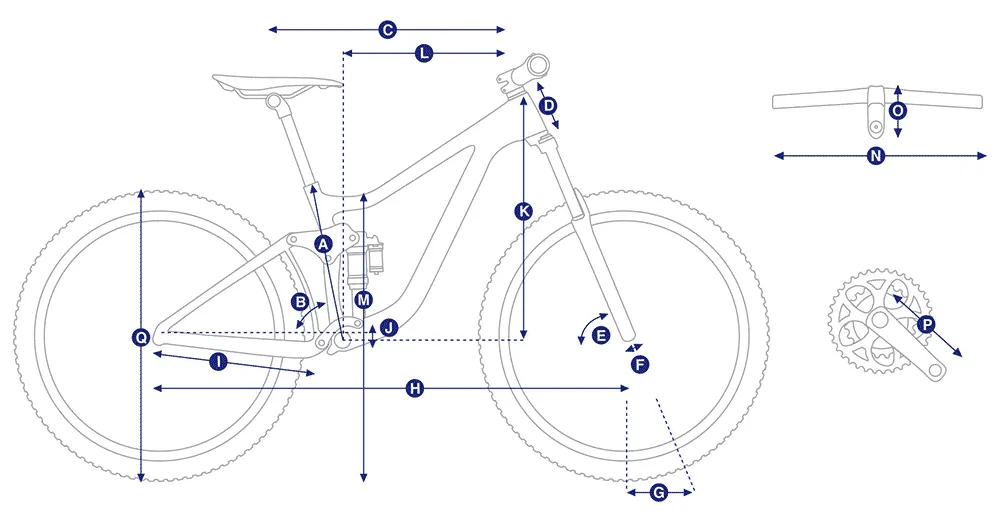

Adjustable enduro geometry: Flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9, or 64.2-degree head angle and corresponding 78.3, 78.7, or 79-degree seat tube angle, resulting in a 35, 30, or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style, and rear-wheel size.
Rear wheel options: Riders can choose either the stock 29-inch rear wheel or switch to 27.5. The larger 29-inch option improves stability and roll-over capabilities, while 27.5 delivers a more agile, snappier feel. It’s a quick and easy way to adjust the bike’s handling and feel.
Specifications
Sizes: S, M, L, XL
Colours: Digital Blurple/Raw Carbon
Frame: Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm chainline
Fork: Fox 38 Factory, 170mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant
Shock: Fox Float X2 Factory, custom tuned for Giant
Handlebar: Giant Contact SLR TR35, composite, 35mm
Grips: Giant Tactal Pro Single lock-on
Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Seatpost: Giant Contact Switch AT dropper, adjustable travel, remote
Saddle: Giant Romero SL
Pedals: N/A
Shifters: SRAM AXS Pod, 1x12
Front Derailleur: N/A
Rear Derailleur: SRAM GX Eagle T-Type AXS
Brakes: Shimano SLX M7120, hydraulic, Shimano RT-66 rotors [F] 220mm, [R] 203mm
Brake Levers: Shimano SLX BL-M7100
Cassette: SRAM GX, T-Type 10x52
Chain: SRAM GX T-Type
Crankset: SRAM GX T-Type, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket: SRAM DUB, press fit
Rims: Giant TRX 2 29 Carbon WheelSystem, 30mm inner width
Hubs: [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 30t 3-pawl driver, 6-bolt
Spokes: Sapim
Tires: [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO , TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless
Extras: Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector
Mfr Claimed Weight
TBC
